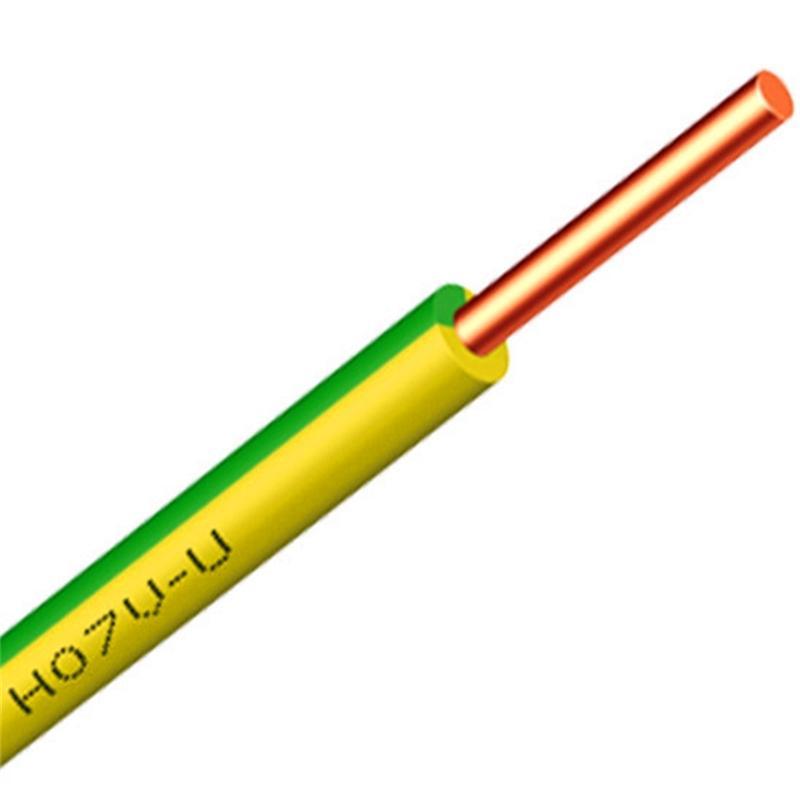

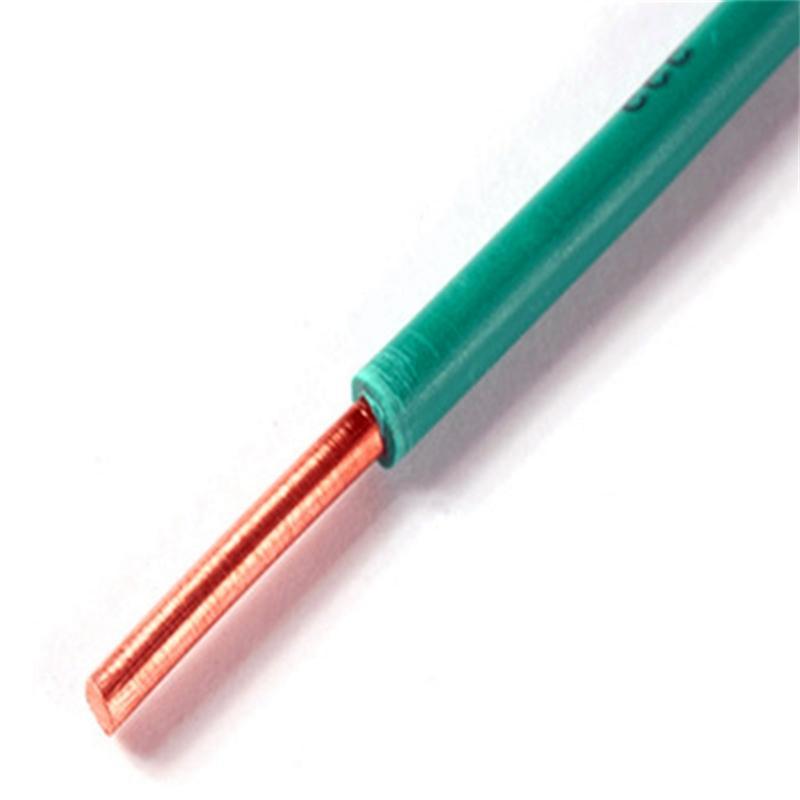

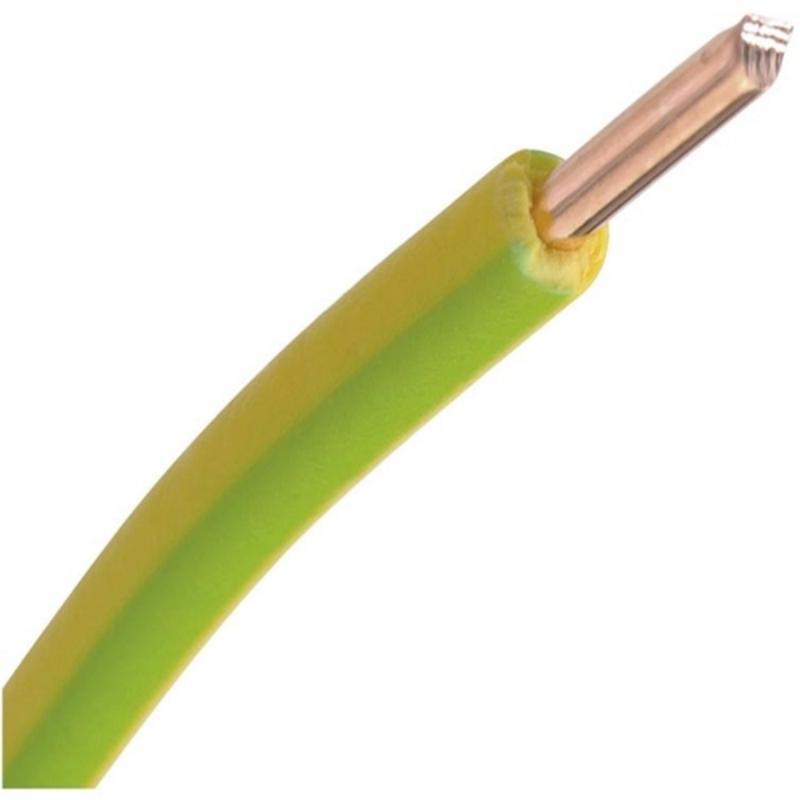

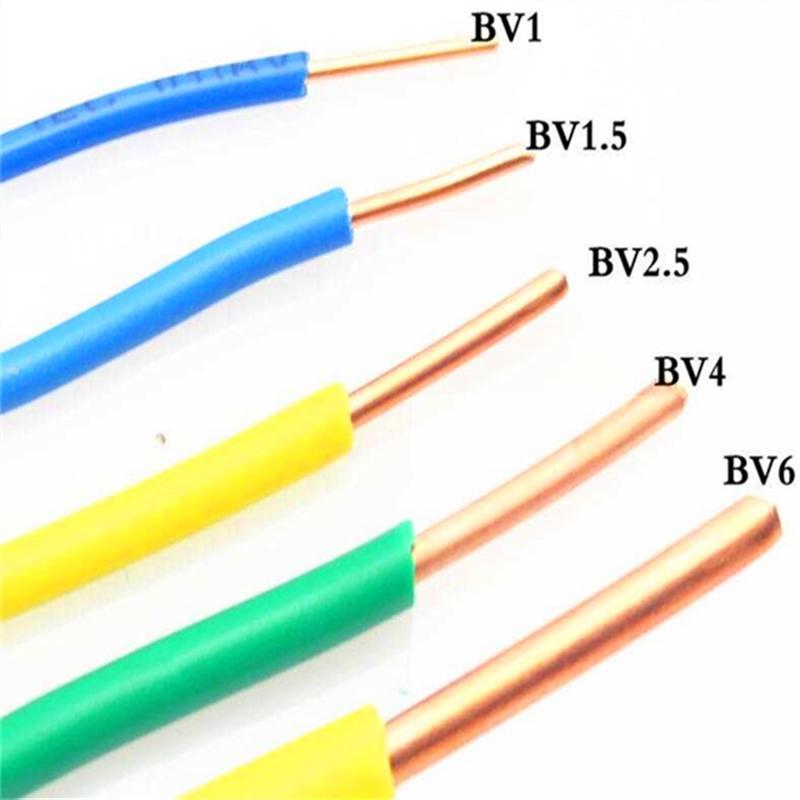

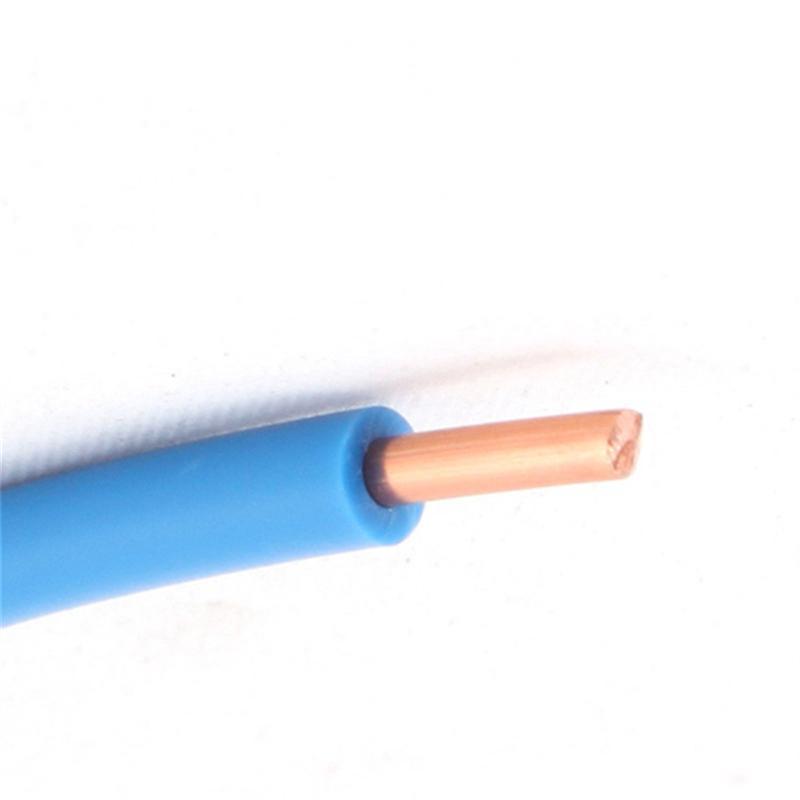

H07V-U 6491X BV Solid Copper Wire PVC Insulated Electrical Wire And Cables

Classification: H07V-U Solid Copper Wire Electrical Wires

Order(MOQ) Seebest

Payment: T/T, L/C, Cash.

Product Origin: Xiamen City, China.

Color: Red, yellow, blue, green, brown, black, white, grey

Shipping Port: Xiamen port, China.

China.Lead Time: Within 3-7 working days as soon as we received the deposit.

PRODUCTS NAME

H07V-U 6491X BV Solid Copper Wire PVC Insulated Electrical Wire and Cables.

PRODUCTS KEYWORDS

H07V-U, 6491X, NYA, BV, solid copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.

PRODUCTS APPLICATION

H07V-U 6491X BV Solid Copper Wire PVC Insulated Electrical Wire and Cables, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

PRODUCTS STRUCTURE

H07V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables, the structure as below:

---Conductor Material

Plain annealed copper wire, solid Class 1.

---Insulation Material

PVC(polyvinyl chloride).

---Sheath Material

Non-Sheath.

PRODUCTS DESCRIPTION

 Description of Cable   Products Main Technical Sheet
 Products Name

 H07V-U 6491X BV Solid Copper Wire PVC Insulated

 Electrical Wire and Cables.

 Conductor Material  Plain annealed copper wires, solid Class 1.
 Conductor Structure  1/1.78 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.8 mm.
 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  1 x 2.5 mm2.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  3.9 mm.
 Voltage Rate  450/750V (U0/U).
 About Net Weight  31 kg/km.

 Max. Conductor DC

 Resistance at 20℃ in Air

 7.41 Ω/km.

 Min. Insulated

 Resistance at 70℃

 0.010 MΩ.km.

 Max. Ampacity

 at 40℃ in air

 34A.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.
